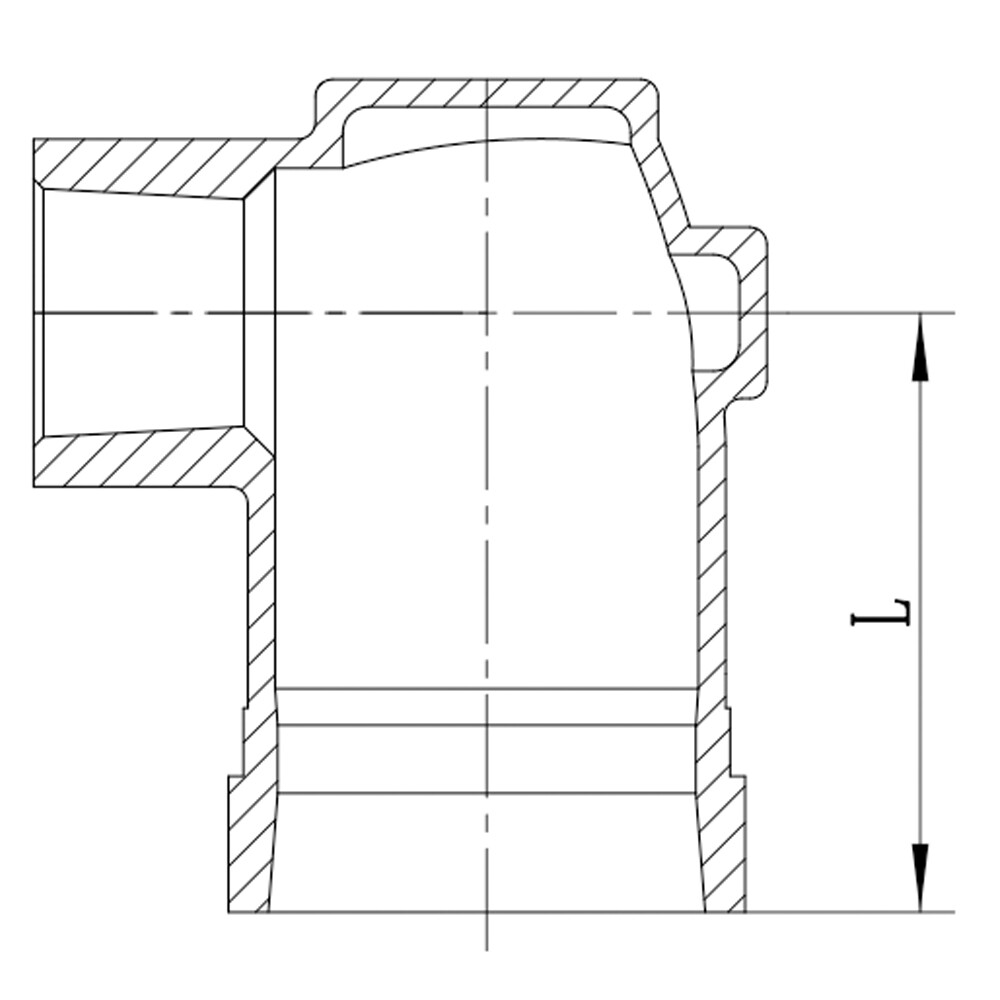

Nominal Tamaño mm/pulgada | Diámetro exterior de la tubería. mm/pulgada | Laboral Presión psi/Mpa | Dimensiones L mm/pulgada |
32×15 1¼x½ | 42,4*21,3 1.660*0.825 | 300 psi 2,07 Mpa | 60 2.362 |
32×20 1¼x¾ | 42,4*26,9 1.660*1.050 | 60 2.362 |
32×25 1¼x1 | 42,4*33,7 1.660*1.315 | 60 2.362 |
40×15 1½x½ | 48,3*21,3 1.900*0.825 | 60 2.362 |
40×20 1½x¾ | 48,3*26,9 1.900*1.050 | 60 2.362 |
40×25 1½x1 | 48,3 × 33,7 1.900×1.315 | 60 2.362 |
50×15 2x½ | 60,3 × 21,3 2,375 × 0,825 | 70 2,75 |
50×20 2x¾ | 60,3 × 26,9 2,375 × 1,050 | 70 2,75 |
50×25 2×1 | 60.3×33.7 2.375×1.315 | 70 2.75 |
65×15 2½x½ | 73,0 × 21,3 2,875 × 0,825 | 76 3.00 |
65×20 2½x¾ | 73,0 × 26,9 2,875 × 1,050 | 76 3.00 |
65×25 2½x1 | 73,0 × 33,7 2,875 × 1,315 | 76 3.00 |
